DETAILS

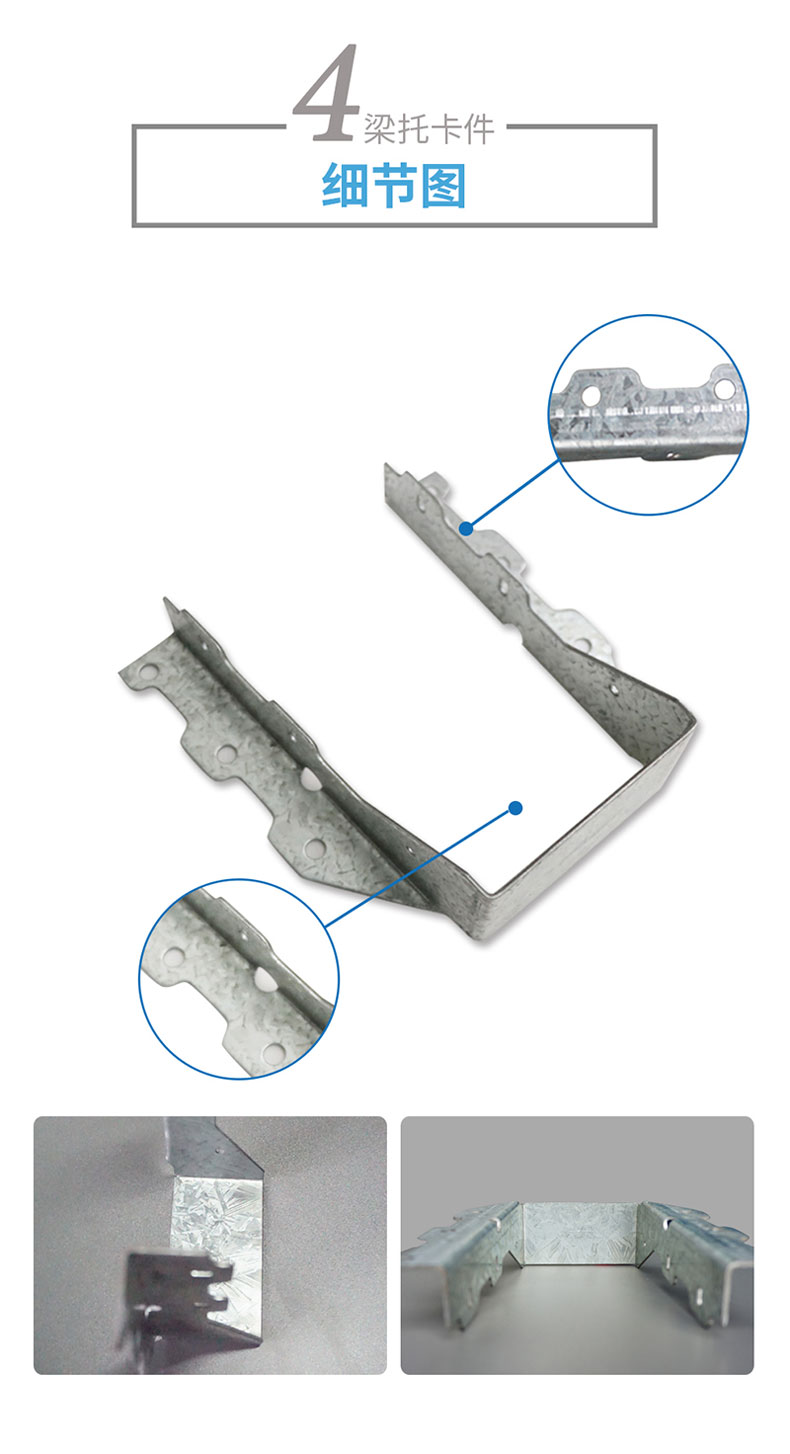

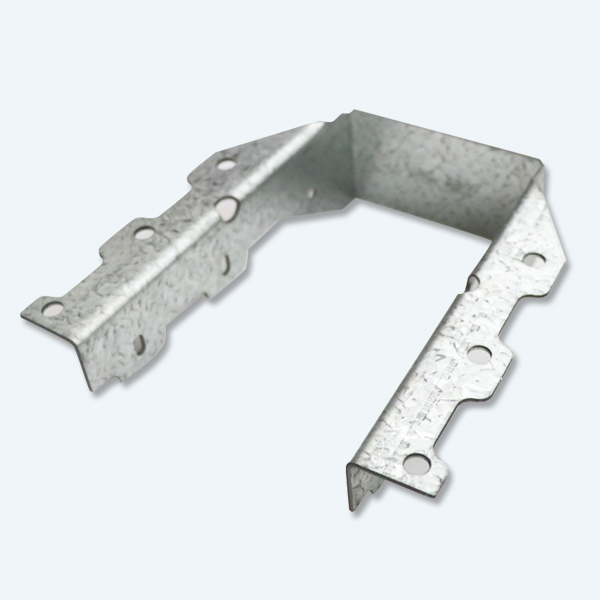

Truss Bracket connect parts

Model：LT141-20

Dimensions：141*134*2.0（mm）

Material:  Q345 (Grade: SGH340 – Z275)

Zinc layer:  2 sides 275 g/M2

Truss Bracket connect parts installation, clamp truss from bottom to top, fixed with outer hexagon drill tail screw, also be used to connect roof panels to trusses, same connection mode, compliance with relevant national standards, corner connect parts can be used instead.

B wall, Truss Bracket connect parts, Floor beams

Introduction

The truss bracket connect parts is applied to the wooden structure, which is equivalent to connecting two corner connect parts into a whole for use, with higher strength. The truss bracket connect parts is often used at the intersection of trusses or eyebrow trusses. Generally, it is necessary to know this product to design the structural LGS.

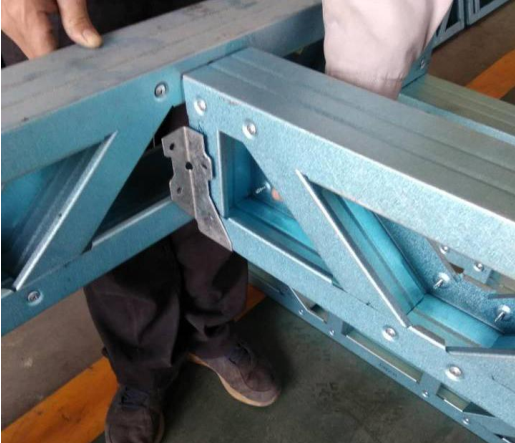

Installation Diagram

Truss and roof connect – Floor and wall connect
