DETAILS

Truss strengthening connect parts

Model：HK115-20

Dimensions：115*59*2.0（mm）

Material:  Q345 (Grade: SGH340 – Z275)

Zinc layer:  2 sides 275 g/M2

Installation Instructions

Truss strengthening connect parts, normally, used in the connection the wall and the truss，according to the installation station can be used in the inner wall or external wall with thin flat or round head washer drlling screw. There are no other parts on both sides of the connecting truss and the upper of the wall, the outer hexagonal drill tail screw can be used to fix it.

Roof  truss,

The top of wall LGS,

Roof  truss,

The top of wall LGS,

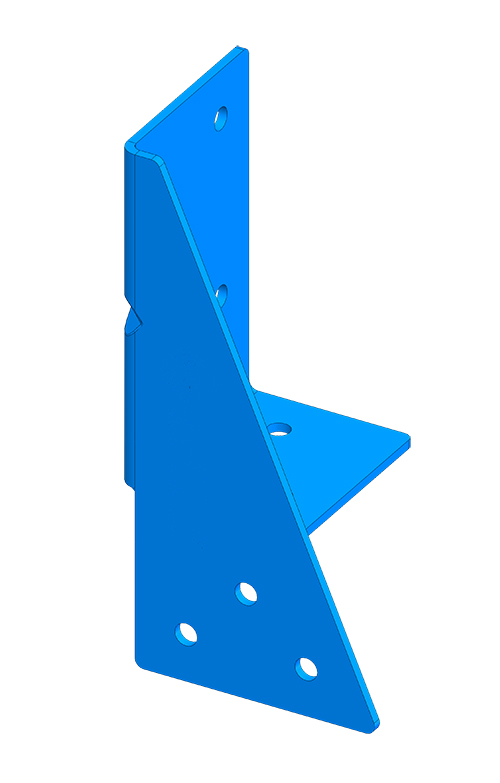

Truss connect parts right

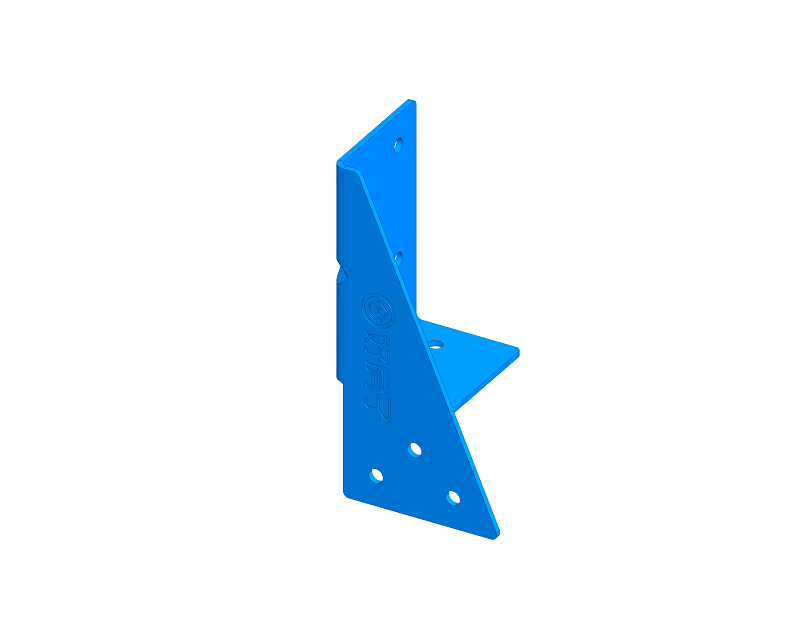

Truss connect parts left

Introduction

Truss strengthening connect parts, It’s simplified of truss connect parts, Remove the empty holes, and it’s updated of wind resistance connect parts, Products include 2 parts and use as a set ,

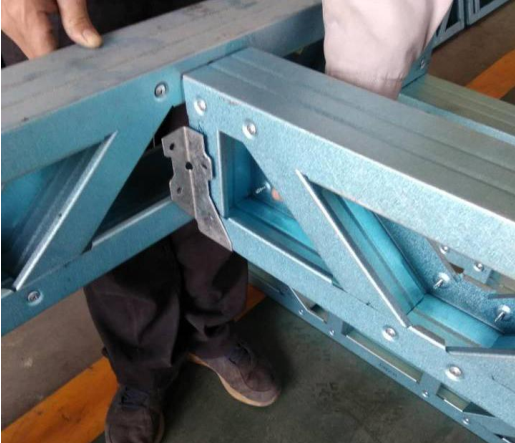

Installation Diagram
