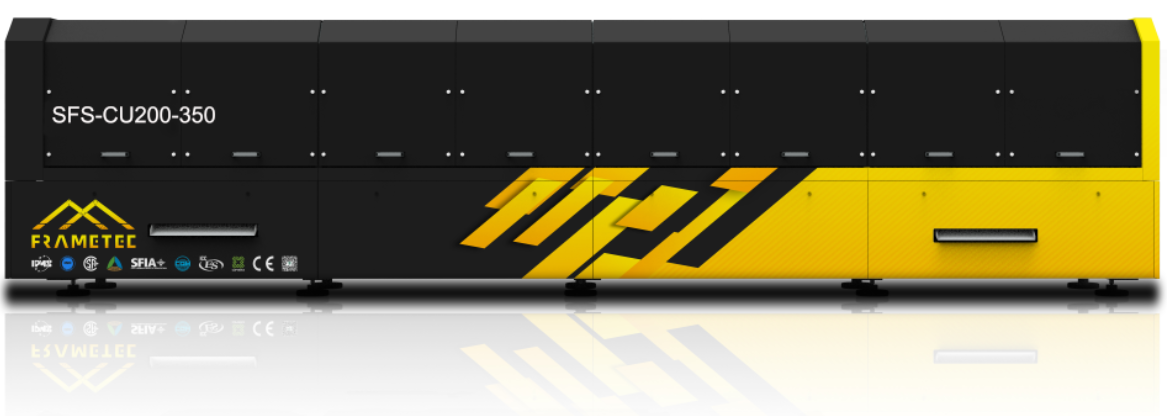

SFS-CU200-350 light steel frame machine for multi profile floor joist SFS-CU200-350
SFS-CU200-350 is with a big service hole that dedicated for floor joist cassette manufacturing, which is an easy to install modular floor system used in timber, steel or concrete projects. It offers a strong and simplified floor solution, is part of the new wave of off-site manufacturing processes. You will also benefit from improved installation efficiency over SFS-CU200-350 floor joist machine.
Applications: floor joist for apartment, light commercial building, commercial building & etc.
OVERVIEW

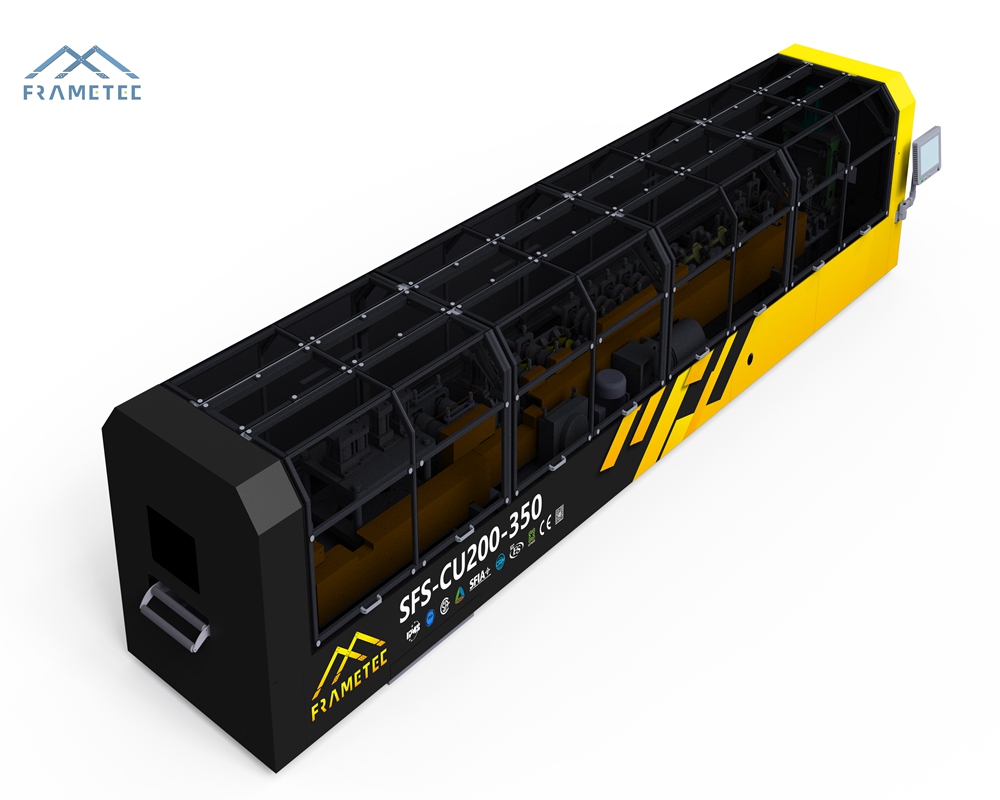

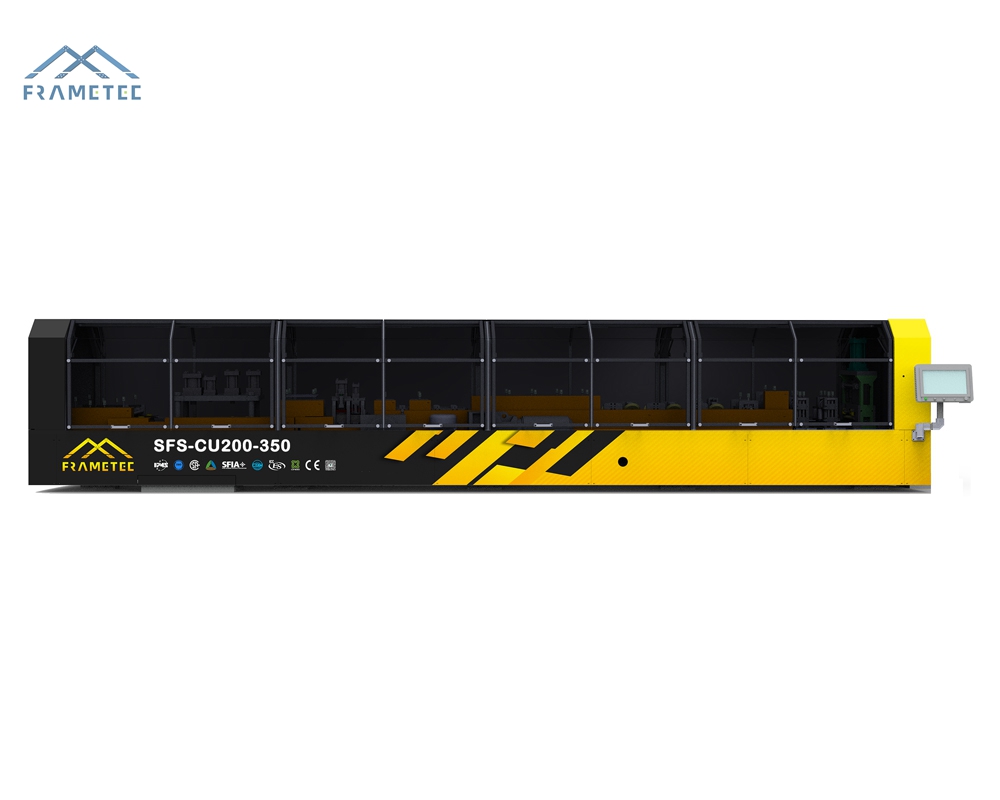

Machine Part
Ⅰ、Specifications
|

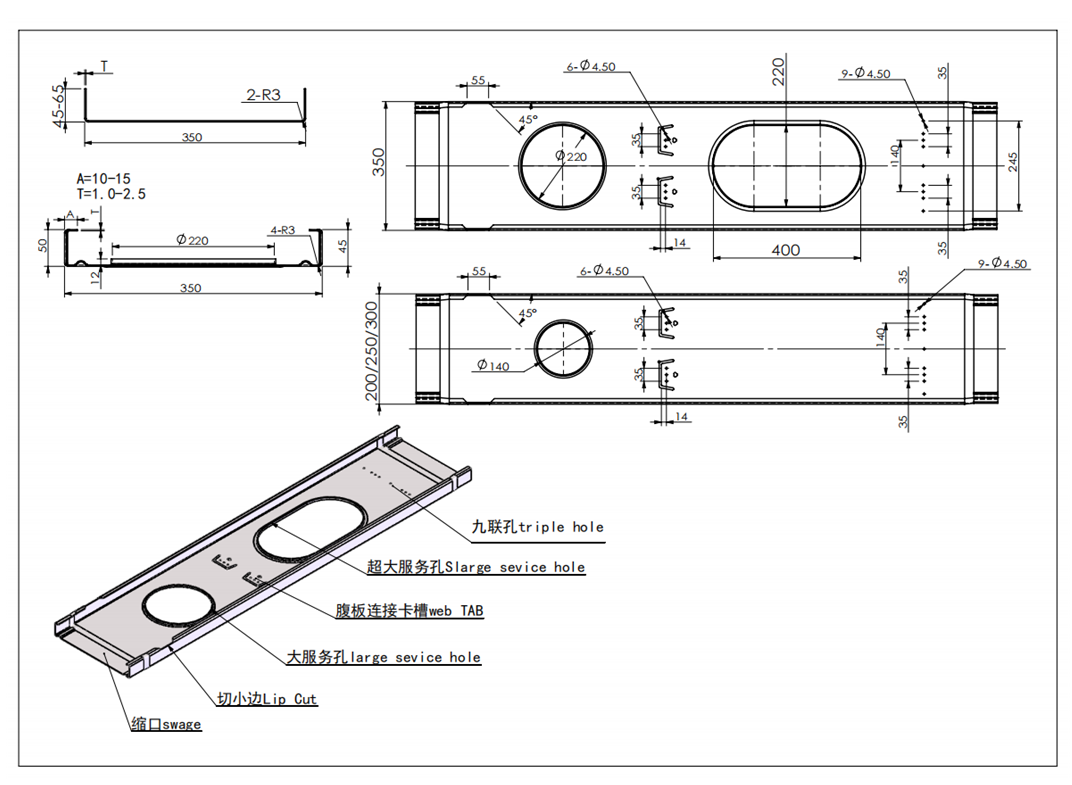

Profile Shape |
C and U |
|
Profile Size |
200mm/250mm/300mm/350mm |
|
Material Thickness |
1.0-2.5 mm, G300-G450 Zinc-Alum Steel Coil |
|
Operation System |
21 inches Touchable Screen |
|
Production Control System |
Self-devoloped FrameTec LGR1 machine controlling Software |
|
Design Software |
Vertex BD/ Framebuilder MRD / Strucsoft & etc. |
|
Comprehensive Machine Speed |
Joists: 500 m/hr |
|
Max. Machine Speed |
2,150m/hr |
|
Punching, Cutting Mould |
Fixing tabs, Web hole, Service Hole, Dimple, Web Notch |
|
Hole Punching Accuracy |
± 0.5 mm |
II. Machine Video
III. Machine Main Features
|
Classical LGS machine models for 10+ years, very stable and with high speed production speed |
Saves time And money on project costs |
|
Services can pass through the pre-punched holes in the joist. |
Lightweight & requires no propping. |
|
High line speed results in the accelerated cold formed steel framing and truss manufacturing output |
Smart internet connectivity provides cloud-based data reporting to enable real-time production management, and technical diagnostics to improve efficiency |
|
The lightweight joists are able to be manually positioned requiring less cranage. |
Self developing control system base on the market feedback that can meet your requirement well & with good after sales support |

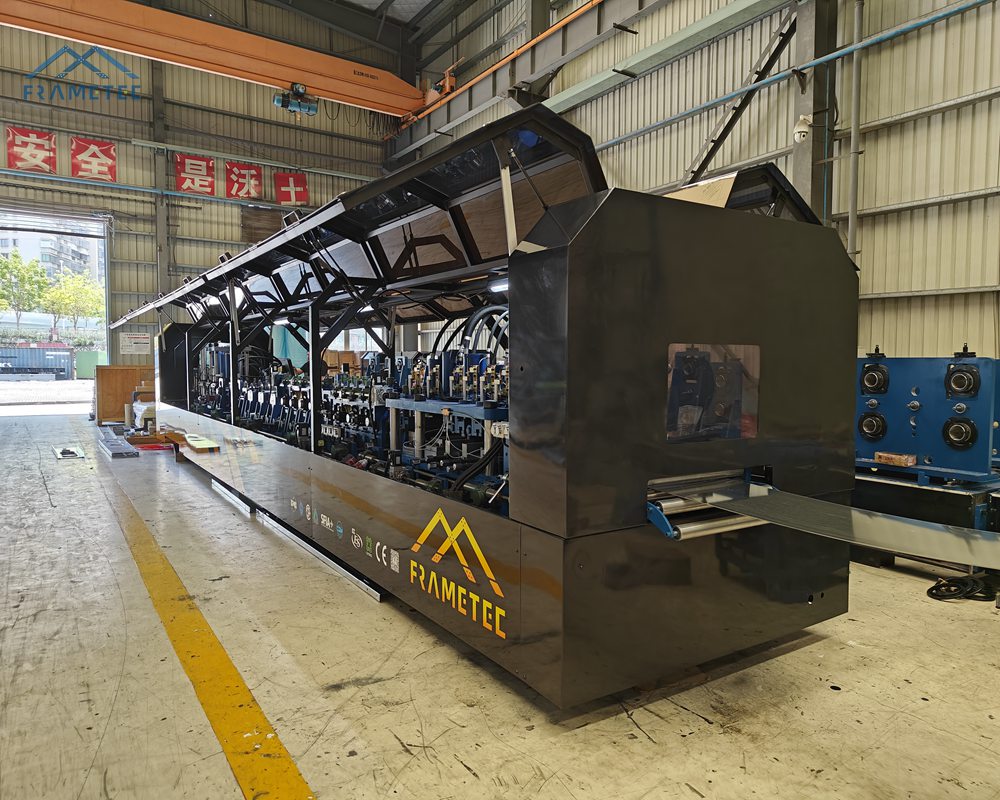

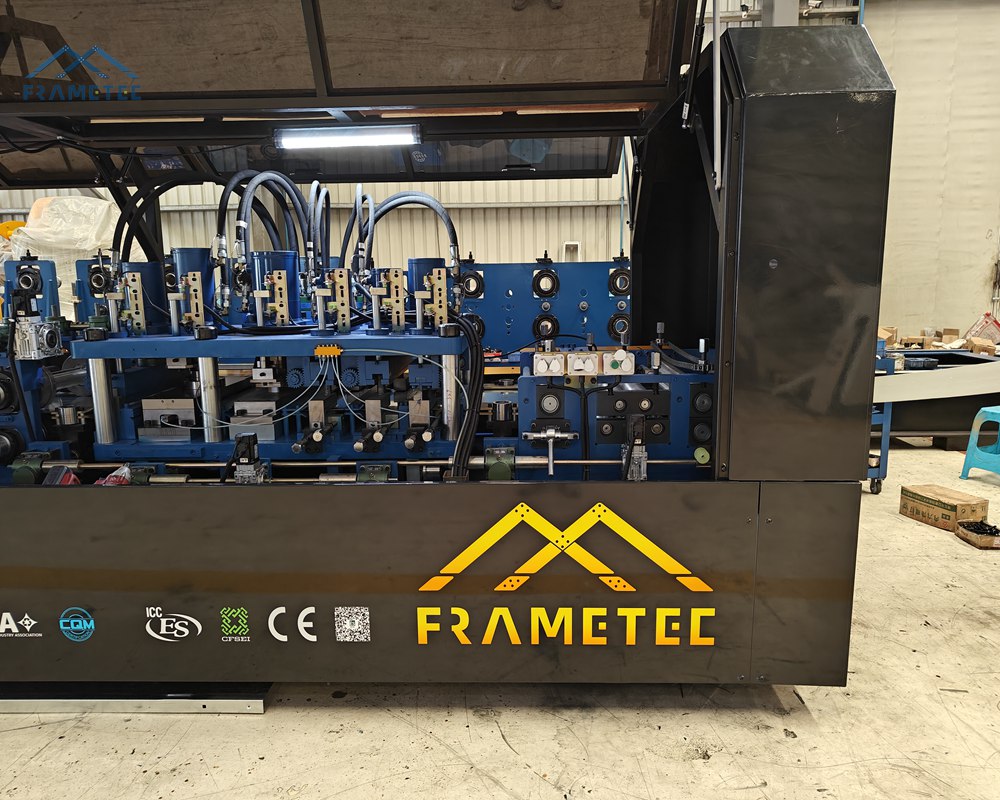

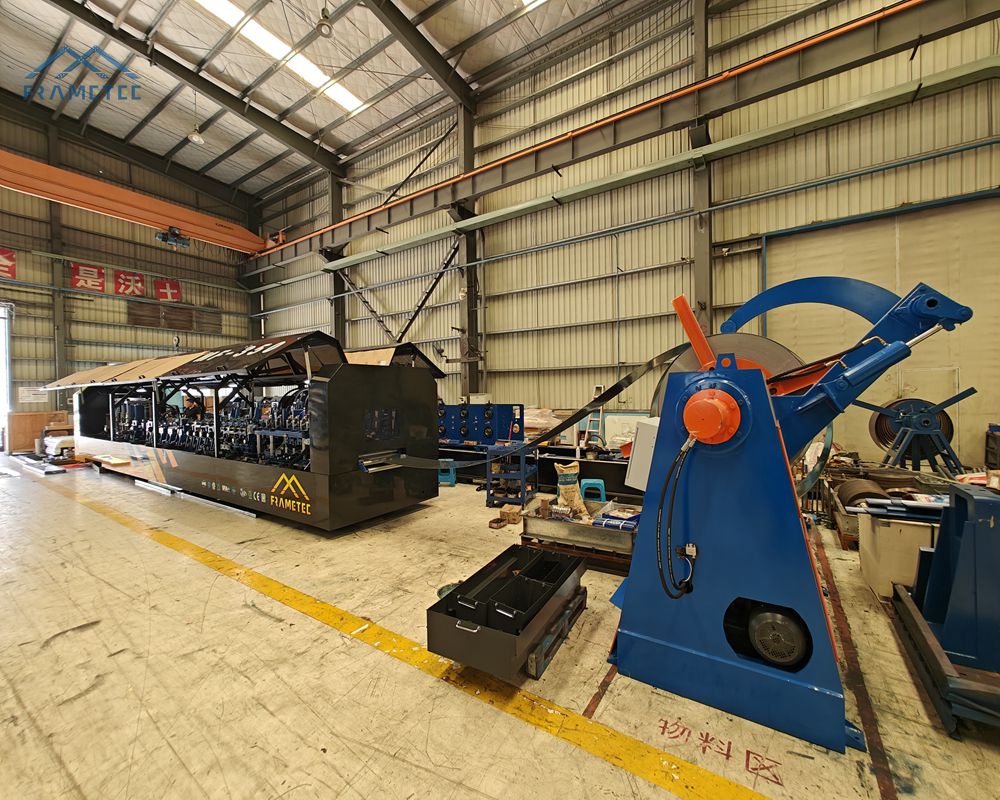

IV. Machine Details

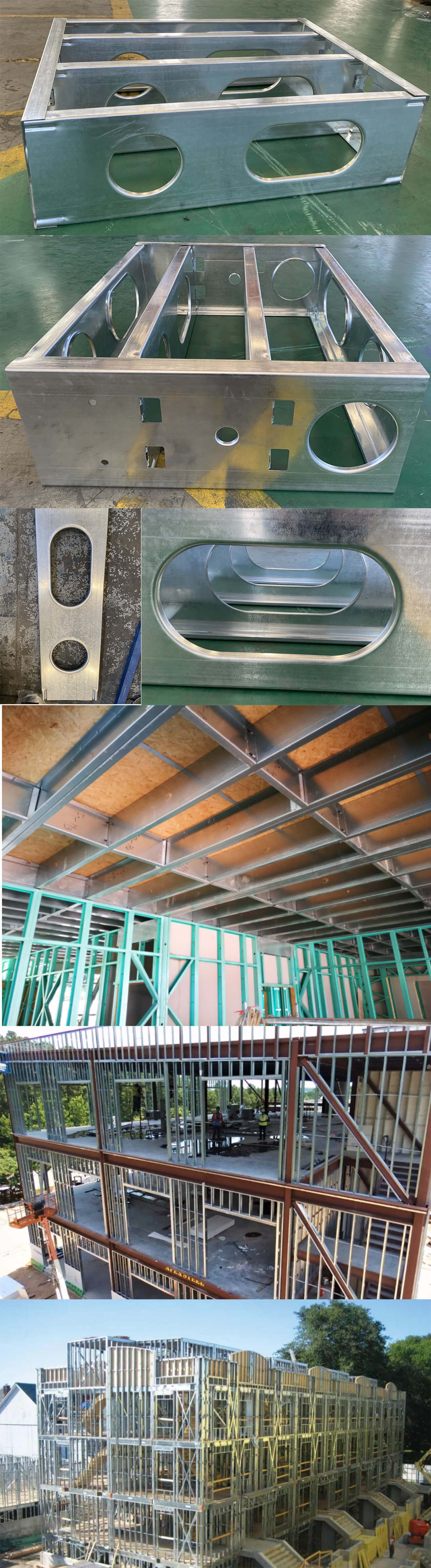

V. Profile Effect & Application
VI. Why Choose FrameTec
FrameTec- a specialized manufacturer of high-quality roll-forming equipment for constructing light steel frame structures & cold-formed steel structures.
Since 2009, FrameTec insists on cooperating with customers as a partner and actively provides effective solutions to ensure reliable product performance, advanced technology and easy operation, and promote users to a higher position in the fierce market competition.
All Frametec machines have a built in Windows based machine control which accepts a basic CSV file from a range of design software options that link to our machine. This gives freedom of choice to the customer.
FrameTec specializes in Designing and Manufacturing Steel Framing Machines for Wall Panels, Trusses and Floor Joists in:
l Residential and Commercial buildings
l Steel framed systems for modular & prefabricated buildings
l Walls framed for low and high rise buildings
l Walling, floors, beams, roofing, kitchen & bathroom pods
l Storage, recreational, transportable dwellings
FrameTec, the intelligent manufacturing solution provider for multi-storey prefabricated buildings !
